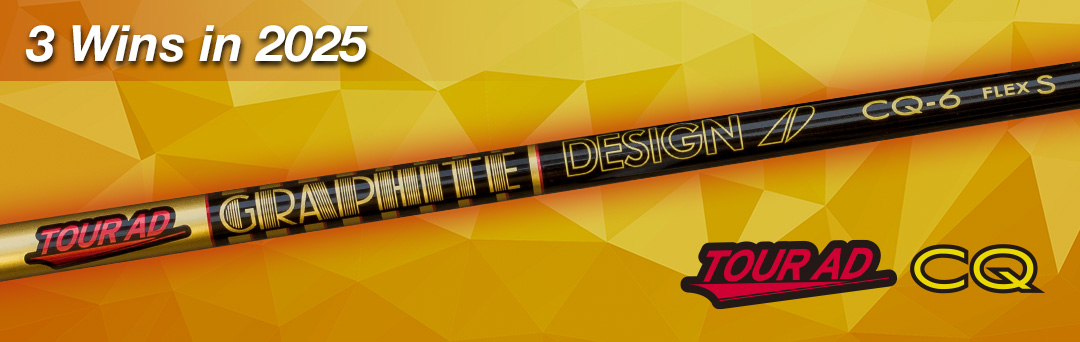

Designed and manufactured at the Graphite Design Japan factory headquarters, the Graphite Design Tour AD CQ – CONQUEST wood shafts are jet black with gold and red accents and finished with a gloss clear coat.
The Tour AD CQ, like the other high performance Tour AD wood shafts, utilizes premium, aerospace quality carbon-fiber materials and are available in 40g R2, R1 and S flex, 50g R2, R1, S and X flex, 60g SR, S, X and TX flex, 70g S, X and TX flex and 80g X flex.
The Tour AD CQ shafts features the new Nitta 2G-Namd carbon-fiber material technology in the butt section of the shaft and has a bend profile of firm in the handle section, firm in the center section and a medium+ tip section to promote mid-high launch angles and mid ball spin rates. The Nitta 2G-Namd material is based on modern carbon nano tube technology that binds the fibers tighter together than standard carbon materials to aid in a higher degree of energy transfer thru the golf club and a more solid impact of the golf ball than shafts without Nitta 2G-Namd technology.
Visit your local Graphite Design dealer for a fitting and experience what the new Tour AD CQ wood shafts with Nitta 2G-Namd can offer in your CONQUEST to gain a Tour level of precise Accuracy and greater Distance that all Tour AD shafts are so well known for. Revolutionary technology, design and the most advanced materials are trademarks in all Graphite Design shafts, resulting in the highest quality premium golf shafts on the market today. Validating the company’s “Tour AD” logo, all of Graphite Design’s Tour proven shafts are specifically designed to promote a gain in Accuracy and Distance.
Features & Technology:
- Nitta 2G-Namd Material Technology promoting efficient energy transfer
- 50 ton ultra-premium, high modulus, aerospace quality carbon fiber materials.
- Graphite Design proprietary Material Stiffness Integration (MSI) design philosophy and technology.
Bend Profile:
| SHAFT | BUTT Section | MID Section | TIP Section |
|---|---|---|---|
| CQ-4 | FIRM | FIRM | MEDIUM+ |
| SHAFT | BUTT Section | MID Section | TIP Section |
|---|---|---|---|
| CQ-5, -6, -7, -8 | FIRM | FIRM | MEDIUM+ |
Performance:
- CQ-4 is designed to promote Mid/High launch angles with Mid ball spin rates.
- CQ-5, -6, -7, -8 are designed to promote Mid/High launch angles with Mid ball spin rates.
- MSRP $500
Fitting:
| 71-85 MPH | 86-95 MPH | 92-98 MPH | 96-105 MPH | 105+ MPH | 110+ MPH |
|---|---|---|---|---|---|
| R2 Flex (Lite/Senior) |
R1 Flex (Regular) |
SR Flex (Stiff Regular) |
S Flex (Stiff) |
X Flex (X-Stiff) |
TX Flex (Tour X-Stiff) |
Tip Trimming for Standard Bore:
| Driver | 3 Wood | 5 Wood | 7 Wood | 9 Wood |
|---|---|---|---|---|
| 0″ | 0.5″ | 1.0″ | 1.0″ | 1.0″ |
- Pro’s Choice encourages consulting a PGA Professional or qualified club builder to help you determine the correct shaft and length for your swing profile and to meet your goals.
- Always leave a minimum of 0.5″ of the parallel tip section of the shaft above the hosel. For example, with a hosel bore depth of 1.5″ and the shaft has a parallel tip length of 4.0″, the tip trim length should not exceed 2.0″.
- Improper installation may affect the intended performance of the shaft. Warranty is for material and workmanship of our products. Improper installation voids warranty of product.
Specifications:
| Shaft Type | Part Number | Flex | Length | Wt. | Tip OD | Tip Para. | Butt OD | Torque | Kick pt | Launch | Spin |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Tour AD CQ-4 R2 | WCQ4-R2 | Lite/Senior | 46″ | 47g | .335″ | 3.0″ | .596″ | 6.1° | LOW/MID | MID/HIGH | MID |
| Tour AD CQ-4 R1 | WCQ4-R1 | Regular | 46″ | 48g | .335″ | 3.0″ | .596″ | 6.0° | LOW/MID | MID/HIGH | MID |
| Tour AD CQ-4 S | WCQ4-S | Stiff | 46″ | 49g | .335″ | 3.0″ | .600″ | 6.0° | LOW/MID | MID/HIGH | MID |
| Tour AD CQ-5 R2 | WCQ5-R2 | Lite/Senior | 46″ | 53g | .335″ | 3.0″ | .596″ | 4.6° | LOW/MID | MID/HIGH | MID |
| Tour AD CQ-5 R1 | WCQ5-R1 | Regular | 46″ | 54g | .335″ | 3.0″ | .598″ | 4.6° | LOW/MID | MID/HIGH | MID |
| Tour AD CQ-5 S | WCQ5-S | Stiff | 46″ | 56g | .335″ | 3.0″ | .600″ | 4.5° | LOW/MID | MID/HIGH | MID |
| Tour AD CQ-5 X | WCQ5-X | X-Stiff | 46″ | 59g | .335″ | 3.0″ | .604″ | 4.5° | LOW/MID | MID/HIGH | MID |
| Tour AD CQ-6 SR | WCQ6-SR | Stiff Regular | 46″ | 62g | .335″ | 3.0″ | .600″ | 3.4° | LOW/MID | MID/HIGH | MID |
| Tour AD CQ-6 S | WCQ6-S | Stiff | 46″ | 64g | .335″ | 3.0″ | .602″ | 3.4° | LOW/MID | MID/HIGH | MID |
| Tour AD CQ-6 X | WCQ6-X | X-Stiff | 46″ | 66g | .335″ | 3.0″ | .604″ | 3.4° | LOW/MID | MID/HIGH | MID |
| Tour AD CQ-6 TX | WCQ6-TX | Tour X-Stiff | 46″ | 68g | .335″ | 3.0″ | .606″ | 3.4° | LOW/MID | MID/HIGH | MID |
| Tour AD CQ-7 S | WCQ7-S | Stiff | 46″ | 73g | .335″ | 3.0″ | .602″ | 3.2° | LOW/MID | MID/HIGH | MID |
| Tour AD CQ-7 X | WCQ7-X | X-Stiff | 46″ | 74g | .335″ | 3.0″ | .604″ | 3.2° | LOW/MID | MID/HIGH | MID |
| Tour AD CQ-7 TX | WCQ7-TX | Tour X-Stiff | 46″ | 76g | .335″ | 3.0″ | .606″ | 3.2° | LOW/MID | MID/HIGH | MID |
| Tour AD CQ-8 X | WCQ8-X | X-Stiff | 46″ | 83g | .335″ | 3.0″ | .604″ | 3.0° | LOW/MID | MID/HIGH | MID |
