The 2027 Graphite Design Tour AD EK – “Extra Kick” graphite wood shaft is engineered to deliver a mid/high launch with controlled low/mid spin, providing golfers with the ideal combination of increased carry distance, exceptional accuracy, and responsive feel.
Manufactured exclusively in Japan, the Tour AD EK is designed for players seeking effortless launch and maximum distance without sacrificing control. Its specialized EI profile features a stiff butt section, a firm mid-section, and a stable tip section to maximize energy transfer and promote powerful, efficient launch conditions.
Constructed from premium aerospace-grade carbon fiber, the Tour AD EK incorporates new Toray T1200G carbon fiber technology in the tip section, along with Graphite Design’s exclusive AD Shield technology. The result is an outstanding feel, enhanced shaft stability, efficient energy transfer, and consistent performance that golfers have come to expect from the Tour AD lineup.
Ideal for players looking to maximize carry distance while maintaining a smooth yet powerful loading profile, the Tour AD EK delivers the perfect balance of speed, stability, and responsiveness.
Swing Faster. Hit Farther. Experience Maximum Kick Velocity with the new Tour AD EK “Extra Kick” wood shafts from Graphite Design.
Features & Technology:
- AD Shield
- Graphite Design proprietary Material Stiffness Integration (MSI) design philosophy and technology.
- TORAYCA ® T1200G carbon-fiber pre-preg with NANOALLOY ® technology for increased stability in the mid to tip region and unsurpassed feel.
- 50 ton ultra-premium, high modulus, aerospace quality carbon fiber materials.

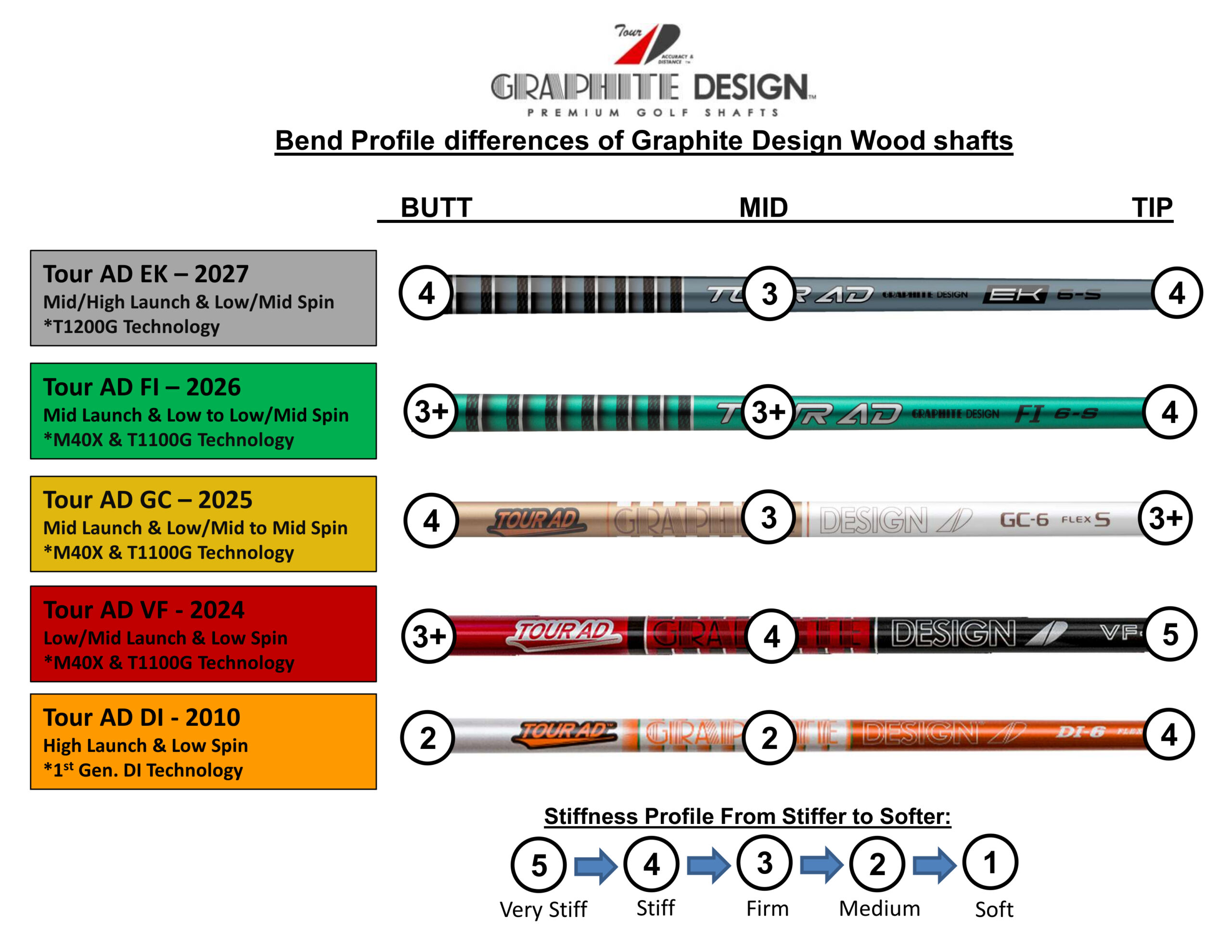

Bend Profile:
| SHAFT | BUTT Section | MID Section | TIP Section |
|---|---|---|---|
| EK-4 | STIFF | FIRM | STIFF |
| SHAFT | BUTT Section | MID Section | TIP Section |
|---|---|---|---|
| EK-5, -6, -7, -8 | STIFF | FIRM | STIFF |

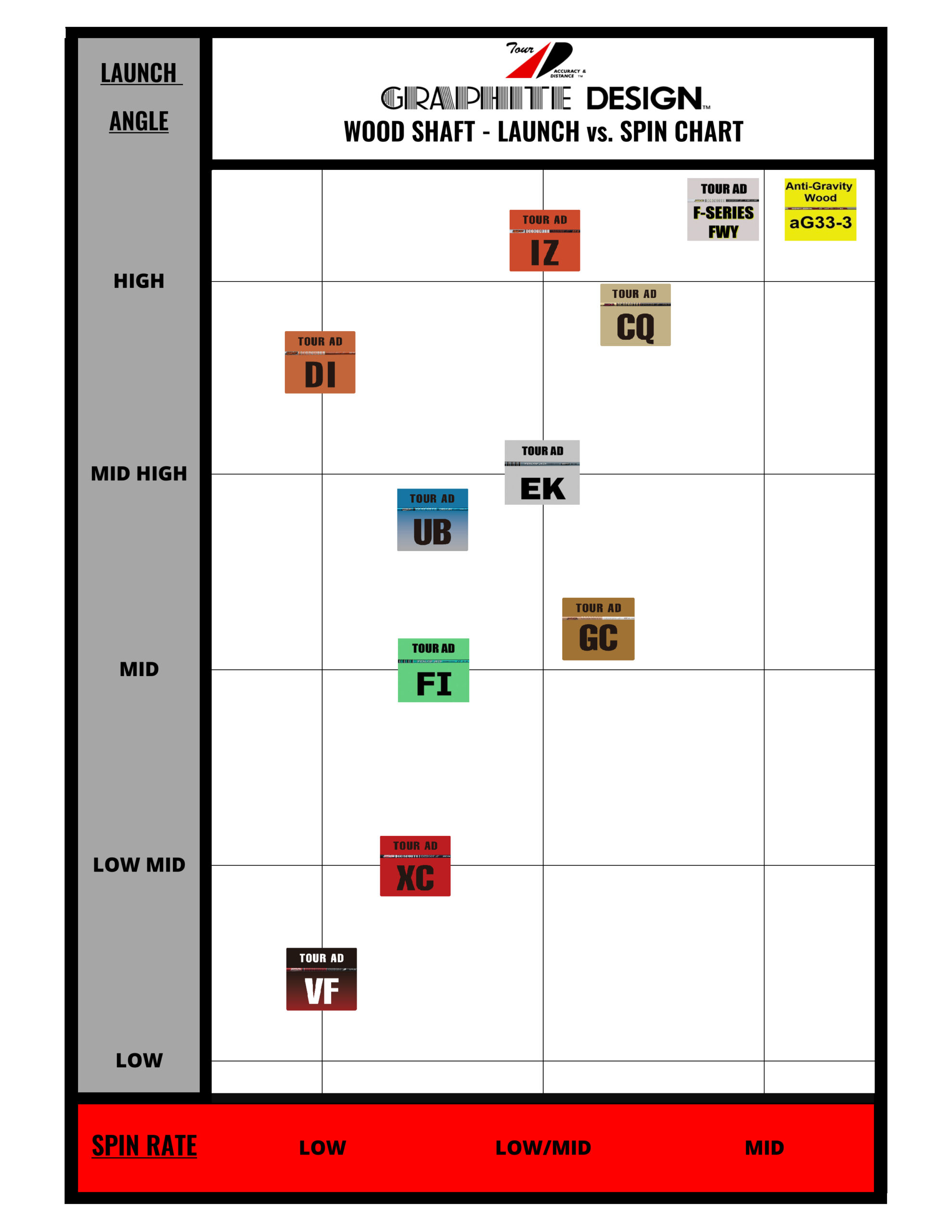

Performance:
- EK-4 is designed to promote Mid/High launch angles with Low/Mid ball spin rates.
- EK-5, -6, -7, -8 are designed to promote Mid/High launch angles with Low to Low/Mid ball spin rates.
- MSRP $500
Fitting:
| 71-85 MPH | 86-95 MPH | 92-98 MPH | 96-105 MPH | 105+ MPH | 110+ MPH |
|---|---|---|---|---|---|
| R2 Flex (Lite/Senior) |
R1 Flex (Regular) |
SR Flex (Stiff Regular) |
S Flex (Stiff) |
X Flex (X-Stiff) |
TX Flex (Tour X-Stiff) |
Tip Trimming for Standard Bore:
| Driver | 3 Wood | 5 Wood | 7 Wood | 9 Wood |
|---|---|---|---|---|
| 0″ | 0.5″ | 1.0″ | 1.0″ | 1.0″ |
- Pro’s Choice encourages consulting a PGA Professional or qualified club builder to help you determine the correct shaft and length for your swing profile and to meet your goals.
- Always leave a minimum of 0.5″ of the parallel tip section of the shaft above the hosel. For example, with a hosel bore depth of 1.5″ and the shaft has a parallel tip length of 4.0″, the tip trim length should not exceed 2.0″.
- Improper installation may affect the intended performance of the shaft. Warranty is for material and workmanship of our products. Improper installation voids warranty of product.
Specifications:
| Shaft Type | Part Number | Flex | Length | Wt. | Tip OD | Tip Para. | Butt OD | Torque | Kick pt | Launch | Spin |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Tour AD EK-4 R2 | WEK4-R2 | Lite/Senior | 46″ | 48.5g | .335″ | 3.0″ | .606″ | 5.3° | MID | MID/HIGH | LOW/MID |
| Tour AD EK-4 R1 | WEK4-R1 | Regular | 46″ | 49.5g | .335″ | 3.0″ | .608″ | 5.3° | MID | MID/HIGH | LOW/MID |
| Tour AD EK-4 S | WEK4-S | Stiff | 46″ | 50g | .335″ | 3.0″ | .608″ | 5.2° | MID | MID/HIGH | LOW/MID |
| Tour AD EK-4 x | WEK4-X | X-Stiff | 46″ | 51.5g | .335″ | 3.0″ | .610″ | 5.2° | MID | MID/HIGH | LOW/MID |
| Tour AD EK-5 R2 | WEK5-R2 | Lite/Senior | 46″ | 55g | .335″ | 3.0″ | .606″ | 4.4° | MID | MID/HIGH | LOW/MID |
| Tour AD EK-5 R1 | WEK5-R1 | Regular | 46″ | 56g | .335″ | 3.0″ | .608″ | 4.4° | MID | MID/HIGH | LOW/MID |
| Tour AD EK-5 S | WEK5-S | Stiff | 46″ | 56.5g | .335″ | 3.0″ | .608″ | 4.4° | MID | MID/HIGH | LOW/MID |
| Tour AD EK-5 X | WEK5-X | X-Stiff | 46″ | 59g | .335″ | 3.0″ | .612″ | 4.4° | MID | MID/HIGH | LOW/MID |
| Tour AD EK-6 SR | WEK6-SR | Stiff Regular | 46″ | 64g | .335″ | 3.0″ | .602″ | 3.2° | MID | MID/HIGH | LOW/MID |
| Tour AD EK-6 S | WEK6-S | Stiff | 46″ | 66.5g | .335″ | 3.0″ | .606″ | 3.2° | MID | MID/HIGH | LOW/MID |
| Tour AD EK-6 X | WEK6-X | X-Stiff | 46″ | 68g | .335″ | 3.0″ | .606″ | 3.2° | MID | MID/HIGH | LOW/MID |
| Tour AD EK-6 TX | WEK6-TX | Tour X-Stiff | 46″ | 70g | .335″ | 3.0″ | .610″ | 3.2° | MID | MID/HIGH | LOW/MID |
| Tour AD EK-7 S | WEK7-S | Stiff | 46″ | 74.5g | .335″ | 3.0″ | .604″ | 2.8° | MID | MID/HIGH | LOW/MID |
| Tour AD EK-7 X | WEK7-X | X-Stiff | 46″ | 77g | .335″ | 3.0″ | .608″ | 2.8° | MID | MID/HIGH | LOW/MID |
| Tour AD EK-7 TX | WEK7-TX | Tour X-Stiff | 46″ | 78.5g | .335″ | 3.0″ | .610″ | 2.8° | MID | MID/HIGH | LOW/MID |
| Tour AD EK-8 X | WEK8-X | X-Stiff | 46″ | 84g | .335″ | 3.0″ | .610″ | 2.6° | MID | MID/HIGH | LOW/MID |
