Introducing the new 2026 Tour AD FI – Flight Intelligence – the next evolution in golf shaft technology from Graphite Design. Designed and manufactured at Graphite Design’s Japan factory headquarters for players who demand precision, power, and consistency, the Tour AD FI features a futuristic look, complete with a sleek new TOUR AD logo, and is finished with a green-to-gloss black fade with silver accents.
Like the other high-performance Tour AD wood shafts, the Tour AD FI utilizes premium, aerospace-quality carbon-fiber materials and is available in 40g R2, R1, S flex and X flex, 50g R2, R1, S and X flex, 60g SR, S, X, and TX flex, 70g S, X, and TX flex, and 80g X flex.
The Tour AD FI shaft profile is Firm+ in the butt section and Firm+ in the center section and has a Stiff tip to promote Mid-launch angles and Low to Low/Mid-ball spin rates. It utilizes Graphite Design’s proprietary AD Shield technology and the new TORNADO TIP TECH, along with the modern Torayca M40X and T1100G material technologies, to reliably transmit the player’s input to the club head, allowing for consistent shot-making and enhanced performance on the course.
Whether shaping shots or maximizing distance, the new Tour AD FI adapts to your swing, delivering unparalleled stability and responsiveness. Elevate your game with a shaft that thinks as fast as you play – because intelligent performance starts with the new Tour AD Flight Intelligence golf shaft from Graphite Design.
Features & Technology:
- AD Shield
- Tornado Tip Tech
- TORAYCA ® M40X carbon-fiber pre-preg.
- TORAYCA ® T1100G carbon-fiber pre-preg with NANOALLOY ® technology for increased stability in the mid to tip region and unsurpassed feel.
- 50 ton ultra-premium, high modulus, aerospace quality carbon fiber materials.
- Graphite Design proprietary Material Stiffness Integration (MSI) design philosophy and technology.

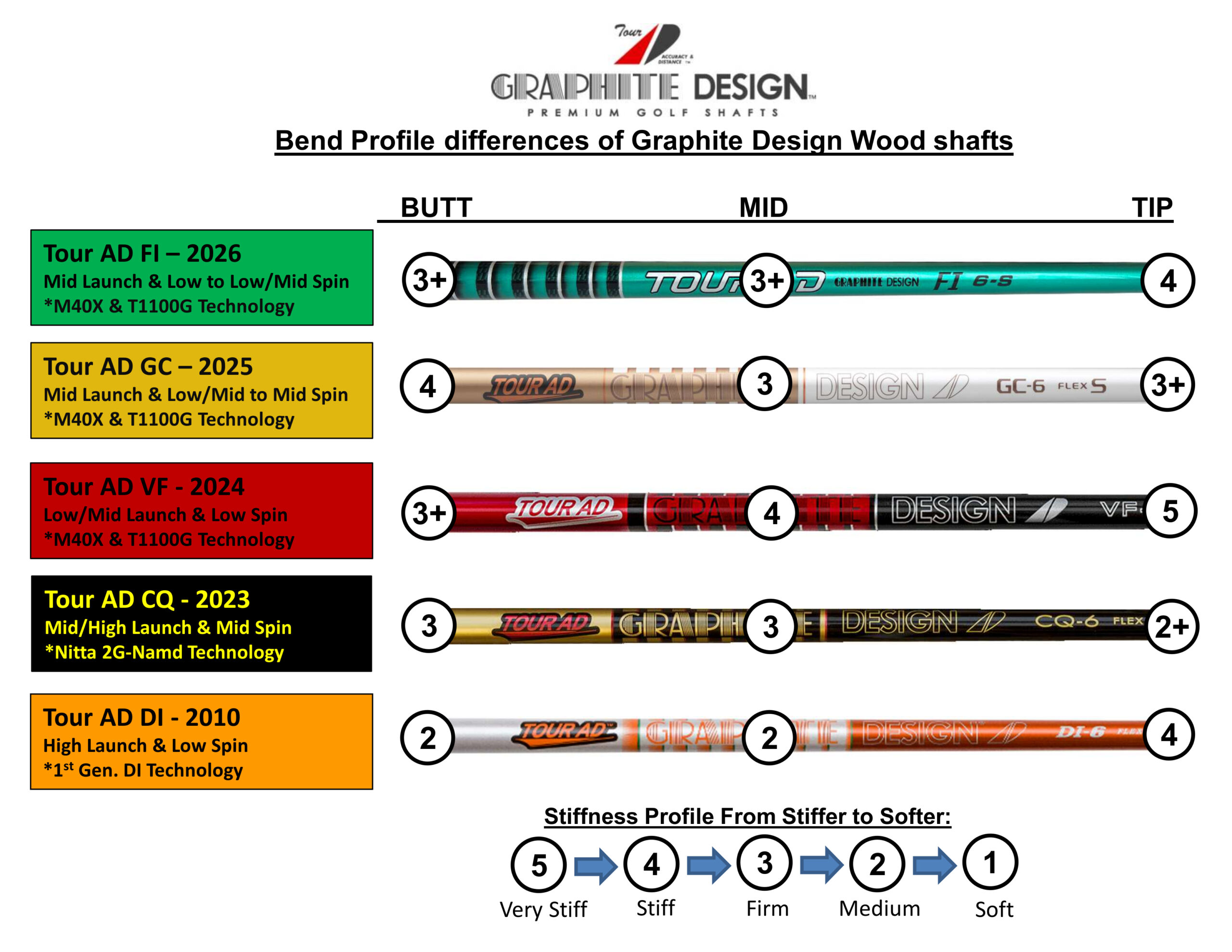

Bend Profile:
SHAFT | BUTT Section | MID Section | TIP Section |
---|---|---|---|
FI-4 | FIRM+ | FIRM+ | STIFF |
SHAFT | BUTT Section | MID Section | TIP Section |
---|---|---|---|
FI-5, -6, -7, -8 | FIRM+ | FIRM+ | STIFF |

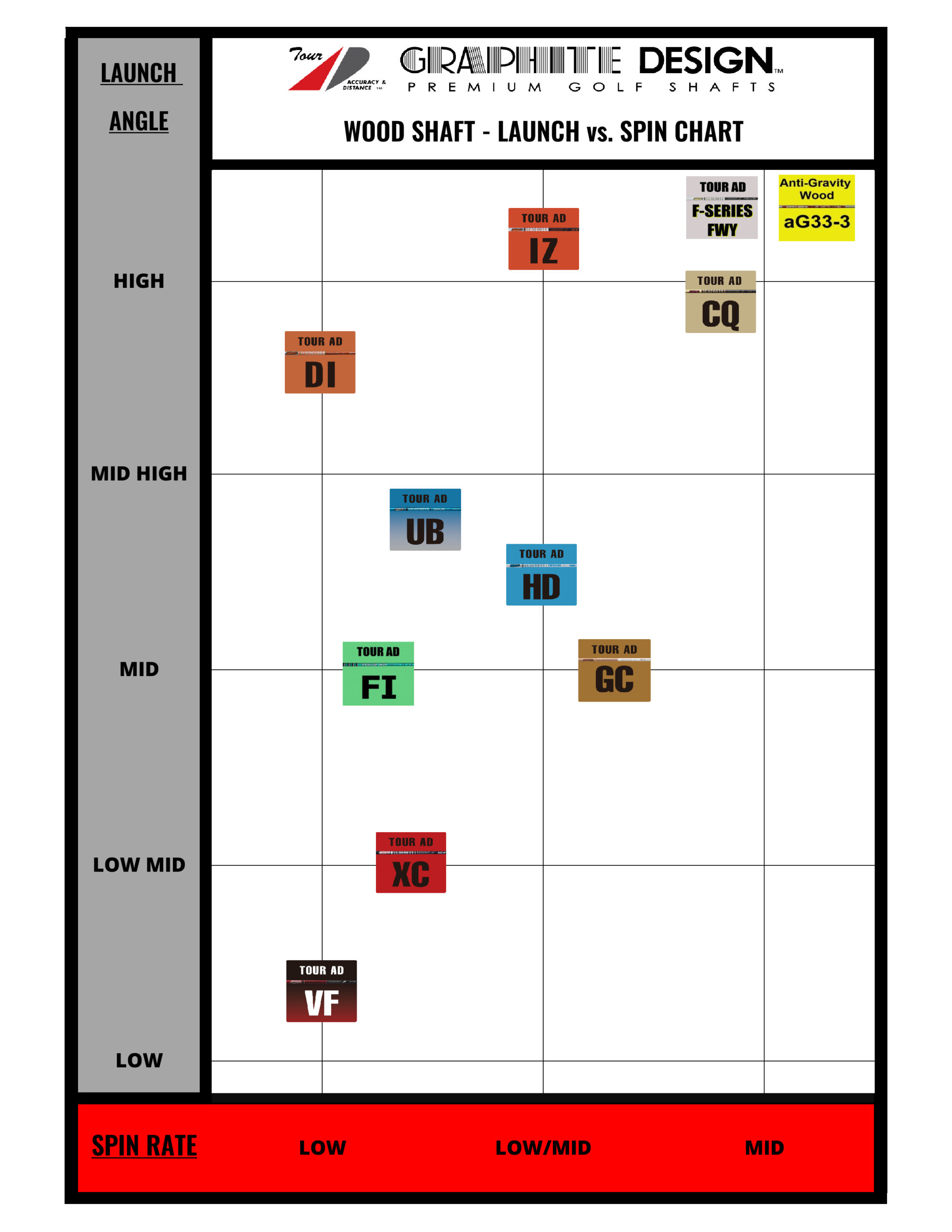

Performance:
- FI-4 is designed to promote Mid launch angles with Mid ball spin rates.
- FI-5, -6, -7, -8 are designed to promote Mid launch angles with Low/Mid ball spin rates.
- MSRP $500
Fitting:
71-85 MPH | 86-95 MPH | 92-98 MPH | 96-105 MPH | 105+ MPH | 110+ MPH |
---|---|---|---|---|---|
R2 Flex (Lite/Senior) |
R1 Flex (Regular) |
SR Flex (Stiff Regular) |
S Flex (Stiff) |
X Flex (X-Stiff) |
TX Flex (Tour X-Stiff) |
Tip Trimming for Standard Bore:
Driver | 3 Wood | 5 Wood | 7 Wood | 9 Wood |
---|---|---|---|---|
0″ | 0.5″ | 1.0″ | 1.0″ | 1.0″ |
- Pro’s Choice encourages consulting a PGA Professional or qualified club builder to help you determine the correct shaft and length for your swing profile and to meet your goals.
- Always leave a minimum of 0.5″ of the parallel tip section of the shaft above the hosel. For example, with a hosel bore depth of 1.5″ and the shaft has a parallel tip length of 4.0″, the tip trim length should not exceed 2.0″.
- Improper installation may affect the intended performance of the shaft. Warranty is for material and workmanship of our products. Improper installation voids warranty of product.
Specifications:
Shaft Type | Part Number | Flex | Length | Wt. | Tip OD | Tip Para. | Butt OD | Torque | Kick pt | Launch | Spin |
---|---|---|---|---|---|---|---|---|---|---|---|
TOUR AD FI 4 R2 | WFI4-R2 | Lite/Senior | 46″ | 49g | .335″ | 3.0″ | .602″ | 5.3° | MID | MID | LOW/MID |
TOUR AD FI 4 R1 | WFI4-R1 | Regular | 46″ | 50g | .335″ | 3.0″ | .602″ | 5.3° | MID | MID | LOW/MID |
TOUR AD FI 4 S | WFI4-S | Stiff | 46″ | 51g | .335″ | 3.0″ | .604″ | 5.2° | MID | MID | LOW/MID |
TOUR AD FI 4 X | WFI4-X | X-Stiff | 46″ | 53g | .335″ | 3.0″ | .606″ | 5.2° | MID | MID | LOW/MID |
TOUR AD FI 5 R2 | WFI5-R2 | Lite/Senior | 46″ | 56g | .335″ | 3.0″ | .604″ | 4.6° | MID | MID | LOW/MID |
TOUR AD FI 5 R1 | WFI5-R1 | Regular | 46″ | 57g | .335″ | 3.0″ | .604″ | 4.5° | MID | MID | LOW/MID |
TOUR AD FI 5 S | WFI5-S | Stiff | 46″ | 57.5g | .335″ | 3.0″ | .604″ | 4.5° | MID | MID | LOW |
TOUR AD FI 5 X | WFI5-X | X-Stiff | 46″ | 60.5g | .335″ | 3.0″ | .608″ | 4.5° | MID | MID | LOW |
TOUR AD FI 6 SR | WFI6-SR | Stiff Regular | 46″ | 64.5g | .335″ | 3.0″ | .598″ | 3.2° | MID | MID | LOW/MID |
TOUR AD FI 6 S | WFI6-S | Stiff | 46″ | 66.5g | .335″ | 3.0″ | .600″ | 3.2° | MID | MID | LOW |
TOUR AD FI 6 X | WFI6-X | X-Stiff | 46″ | 68g | .335″ | 3.0″ | .602″ | 3.2° | MID | MID | LOW |
TOUR AD FI 6 TX | WFI6-TX | Tour X-Stiff | 46″ | 71g | .335″ | 3.0″ | .606″ | 3.2° | MID | MID | LOW |
TOUR AD FI 7 S | WFI7-S | Stiff | 46″ | 75.5g | .335″ | 3.0″ | .600″ | 2.9° | MID | MID | LOW |
TOUR AD FI 7 X | WFI7-X | X-Stiff | 46″ | 78g | .335″ | 3.0″ | .602″ | 2.9° | MID | MID | LOW |
TOUR AD FI 7 TX | WFI7-TX | Tour X-Stiff | 46″ | 79g | .335″ | 3.0″ | .604″ | 2.9° | MID | MID | LOW |
TOUR AD FI 8 X | WFI8-X | X-Stiff | 46″ | 85g | .335″ | 3.0″ | .608″ | 2.6° | MID | MID | LOW |
